Large-Span Heavy-Load Galvanized Bailey Bridge for Rapid Infrastructure Deployment

Modern infrastructure projects increasingly require bridge systems that can combine high load capacity, long spans, rapid installation, dependable service life, and efficient transportation. These requirements are especially important in regions where permanent bridge construction may take considerable time or where emergency access must be restored quickly after floods, earthquakes, landslides, industrial incidents, or other disruptions. A modular steel bridge that can be manufactured in advance, transported in manageable components, assembled near the project site, and adapted to different traffic conditions offers a practical response to these challenges.

The CB450 Type Large Span Heavy Load Galvanized Bailey Bridge has been developed for this demanding class of application. It adopts a four-lane, single-layer reinforced configuration and is designed to provide a combination of large span capability and high load-bearing performance. With a maximum single span of 81 meters and a stated load capacity of up to 80 tons, the system is intended for major temporary, semi-permanent, emergency, logistics, and infrastructure access projects where ordinary modular bridge arrangements may not provide enough capacity or reach.

The bridge has been pre-assembled at the manufacturing facility before shipment to a project site in Sichuan. This process demonstrates an important advantage of modular bridge engineering: factory-based preparation can reduce uncertainty during field erection. Components can be checked, fitted, organized, and evaluated before they are dispatched, allowing the construction team to approach site installation with a clearer understanding of the assembly sequence and the condition of the structural elements.

Hot-dip galvanizing provides the primary corrosion-protection treatment for the bridge. By applying a zinc coating to steel components, the process helps protect the underlying material from atmospheric moisture and other corrosive influences. This treatment is particularly valuable for bridges exposed to rain, humidity, changing temperatures, roadside contaminants, construction environments, and difficult transportation conditions. When combined with modular construction and standardized fabrication, galvanizing supports a bridge solution that is practical not only for immediate deployment but also for repeated or extended use.

Engineering Purpose of a Large-Span Heavy-Load Modular Bridge

A conventional bridge project generally requires extensive civil works, permanent foundations, long construction schedules, and substantial coordination among designers, contractors, utilities, and transportation authorities. These arrangements remain appropriate for many long-term infrastructure programs, but they are not always suitable when a connection must be restored quickly or when the final alignment, traffic demand, or operating period is still developing.

Modular Bailey bridge systems address this gap by using standardized structural elements that can be manufactured away from the construction site. The components are transported to the location, arranged according to the approved structural configuration, connected using engineered joining methods, and supported by the required substructure or temporary works. This approach allows the bridge to become part of a broader project strategy rather than a one-purpose structure.

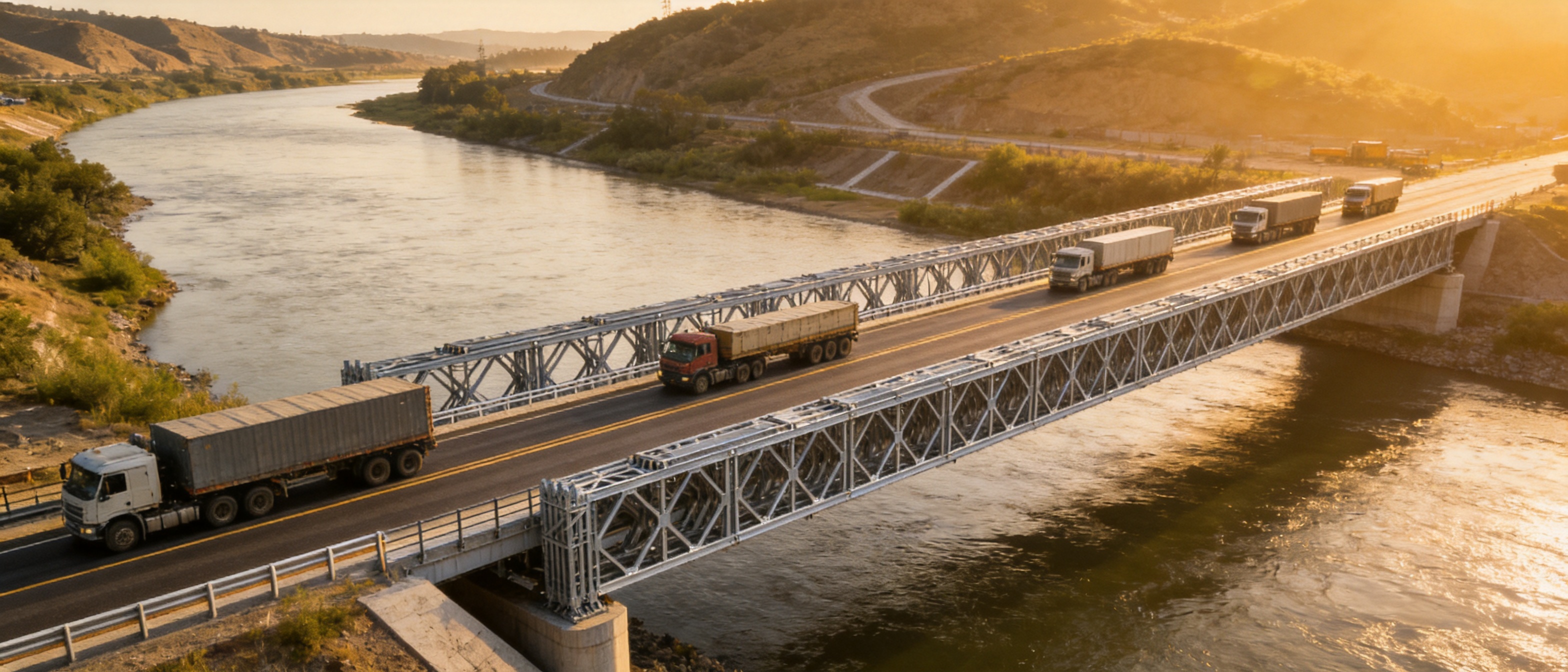

The large-span capability of the CB450 system is particularly significant. A single span of up to 81 meters can help reduce the need for intermediate supports in locations where piers are difficult, undesirable, or impossible to install. Such locations may include river channels, floodways, industrial corridors, road intersections, railway alignments, environmentally sensitive areas, and zones where water flow must remain unobstructed. Reducing the number of intermediate supports can simplify construction and may also reduce interference with navigation, drainage, flood discharge, or existing transportation routes.

High load capacity is equally important. An 80-ton capacity allows the bridge to support demanding vehicle movements and heavy logistical operations when the structural design, foundations, traffic controls, and project conditions are properly coordinated. Heavy vehicles may include construction equipment, supply trucks, emergency response vehicles, industrial transport units, and other authorized loads. The stated design references, including HS-15, HS-20, HS-25, HL-93, and tracked-50, indicate that the bridge is developed with recognized vehicle and load-model requirements in mind.

These load design references should not be interpreted as a substitute for project-specific engineering. Actual allowable traffic depends on span arrangement, support conditions, deck configuration, live-load distribution, wind conditions, fatigue considerations, foundation capacity, erection stages, and local regulations. Nevertheless, the inclusion of recognized design standards demonstrates that the system is intended for serious structural applications rather than light pedestrian or low-volume access alone.

Principal Product Characteristics

The bridge is defined by a set of characteristics that work together to create a high-capacity modular access solution. Its reinforced single-layer arrangement is configured for a four-lane application, providing a broad traffic platform compared with narrow one-lane or two-lane modular bridges. The system is also designed for large single spans, which can be valuable when site restrictions make intermediate supports impractical.

The combination of these features differentiates the bridge from smaller modular systems designed only for short spans, low traffic volumes, or limited vehicle weights. It also provides an alternative to more complicated permanent bridge construction when the project requires speed, adaptability, or temporary access without compromising structural seriousness.

CB450 Type Large Span Heavy Load Galvanized Bailey Bridge

Advantages of the Four-Lane Reinforced Configuration

A four-lane bridge arrangement can provide substantial operational benefits for projects with high traffic demand. It may support two-way traffic with additional capacity, segregated movement for different vehicle types, construction traffic alongside controlled public access, or a wider operating platform for industrial and emergency logistics. The exact traffic arrangement must be established by the project engineer and relevant authorities, but the broad structural platform provides more flexibility than a narrow modular bridge.

For large development projects, a wide bridge can improve site productivity. Construction vehicles may cross without waiting for alternating traffic, materials can move more efficiently between work areas, and access routes can remain available while other infrastructure is being built. In emergency response conditions, a wider deck can help separate incoming and outgoing vehicles, support command logistics, or accommodate different categories of relief traffic under a controlled plan.

The single-layer reinforced configuration also reflects an effort to balance structural performance with modular practicality. Multi-layer arrangements can increase capacity in some circumstances, but they may require more components, greater erection effort, additional lifting resources, and more complicated connection details. A reinforced single-layer bridge can offer a more streamlined arrangement where the required span and load performance can be achieved within the selected system configuration.

Structural selection must always be based on detailed calculations rather than on lane count alone. Designers should evaluate the influence of vehicle positioning, impact factors, braking forces, lateral loads, wind, seismic effects where applicable, temperature movement, deck behavior, fatigue, and construction-stage stability. Even so, the four-lane format establishes a strong starting point for projects that need more than a basic temporary crossing.

Large-Span Performance and Reduced Intermediate Support Requirements

The maximum stated single span of 81 meters places the bridge in a category suitable for sites where a short modular bridge would not be sufficient. Long spans can be useful over waterways because they reduce the number of in-channel structures. They can also help preserve hydraulic flow during high-water events, limit obstructions to navigation, and simplify environmental management. On road and rail projects, a long clear span may reduce disruption to traffic below the bridge and avoid placing supports in existing corridors.

Large-span engineering requires careful attention to deflection, vibration, lateral stability, connection behavior, wind exposure, erection sequence, and support settlement. The bridge must be evaluated not only in its completed condition but also during lifting, launching, temporary support, and load transfer. A modular bridge’s performance depends on the interaction of its panels, transoms, bracing, deck system, bearings, abutments, and foundations. For this reason, the maximum span should be considered a design capability rather than a universal configuration for every project.

When correctly engineered, the long-span arrangement can produce savings in site preparation. Fewer intermediate foundations may mean less excavation, fewer underwater operations, reduced temporary cofferdam work, and lower risk of interference with buried or submerged infrastructure. The effect can be especially valuable in difficult terrain, remote locations, or areas where access for large construction equipment is limited.

Long spans can also support faster restoration after a disaster. A damaged crossing may need to be replaced while the original bridge is repaired. If the waterway or damaged corridor can be crossed from the banks without constructing multiple temporary piers, the response team may be able to shorten the access-restoration schedule. The final duration depends on site access, foundation readiness, transport, weather, permits, and the complexity of the erection plan, but the structural concept is well suited to rapid deployment strategies.

Heavy-Load Capacity for Infrastructure and Logistics

The stated 80-ton capacity is one of the bridge’s most important features. Many temporary bridges are designed primarily for passenger vehicles, light commercial traffic, or limited construction loads. A bridge designed for heavier traffic can support a wider range of project operations, including the movement of equipment needed to build roads, dams, ports, pipelines, railways, industrial facilities, and emergency works.

Heavy-load capability can reduce the need to transfer cargo between vehicles at the bridge approach. In remote projects, every additional transfer creates time, labor, equipment, and safety requirements. A bridge that can accommodate approved heavy vehicles may allow materials and machinery to move directly between work zones. This can improve scheduling and reduce the number of operations required at the crossing.

The design references HS-15, HS-20, HS-25, HL-93, and tracked-50 further indicate that the system has been considered against multiple load-model categories. These references are associated with different vehicle arrangements and design assumptions. The relevant model for a project depends on the governing code, authority requirements, traffic class, and bridge use. A qualified engineer must confirm the applicable model, load combinations, and restrictions before the bridge is placed into service.

Load capacity is also influenced by factors beyond the main truss or panel assembly. The approach embankments, abutments, bearings, deck plates, transoms, foundations, and ground conditions must all be able to receive and transfer the expected forces. Traffic management is equally important. Speed limits, vehicle spacing, axle restrictions, lane control, and inspection procedures may be required to maintain safe operation over the service period.

By providing a high-capacity modular platform, the bridge can serve both planned and unplanned transportation requirements. It may function as a temporary bypass during permanent bridge reconstruction, an access route for a new infrastructure project, a strategic logistics crossing, or an emergency replacement structure. This versatility increases the value of the system for contractors, government agencies, industrial operators, and infrastructure owners.

Hot-Dip Galvanizing and Long-Term Durability

Corrosion is one of the most persistent threats to steel structures. Water, oxygen, salts, industrial pollutants, and repeated wetting and drying can gradually reduce the thickness and performance of unprotected steel. Modular bridges can be exposed to particularly challenging conditions because they are frequently transported, erected, dismantled, stored, and reused. Scratches, handling impacts, environmental exposure, and temporary site conditions may all influence service life.

Hot-dip galvanizing provides a robust protective treatment by immersing prepared steel components in molten zinc. The process creates a metallurgically bonded zinc coating over the steel surface. This coating acts as a barrier and also offers sacrificial protection, meaning the zinc can preferentially corrode in areas where the coating is exposed or damaged. The result is a durable corrosion-protection system that is widely used for outdoor steelwork.

For a bridge intended to operate in changing environments, galvanizing can offer important advantages over basic painted protection alone. Paint systems can provide excellent protection when correctly specified and maintained, but they may require periodic inspection, surface preparation, and recoating. A galvanized component leaves the factory with an integrated protective coating that is well suited to handling and outdoor exposure. Additional coating systems may still be selected when project conditions require them, but hot-dip galvanizing establishes a strong baseline for durability.

Galvanizing is particularly relevant for bridges used in humid regions, areas with heavy rainfall, coastal environments, flood-response work, and locations where maintenance access is difficult. It can help reduce the frequency of corrosion-related repairs and support more predictable operating costs. Proper drainage, detailing, storage, transport protection, and inspection remain necessary because no coating eliminates the need for responsible maintenance.

The service life of a galvanized bridge depends on the local atmosphere, zinc coating thickness, exposure conditions, design details, and maintenance practices. Engineers should consider the corrosivity category of the site, avoid water traps where possible, inspect connections and contact surfaces, and repair any areas affected by cutting, welding, impact, or unauthorized modification. When these practices are followed, galvanizing can make the bridge more suitable for repeated deployment and extended service.

Factory Pre-Assembly as a Quality and Schedule Advantage

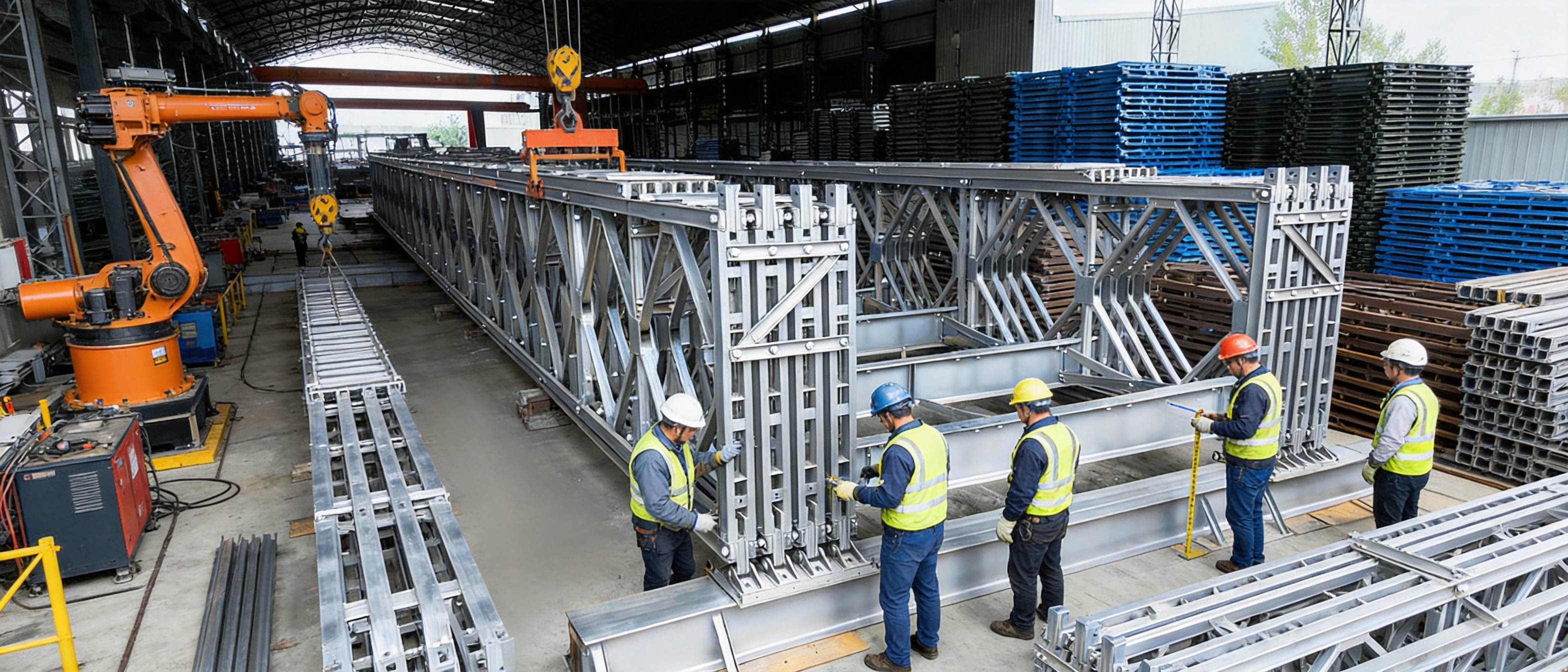

One of the strongest practical advantages of this bridge is the ability to pre-assemble it at the factory before shipment. Factory pre-assembly allows the manufacturer to verify the fit of major components under controlled conditions. It can reveal connection problems, dimensional inconsistencies, missing parts, or assembly-sequence issues before the structure reaches a remote or difficult project site.

Pre-assembly also supports better documentation. Components can be identified, grouped, labeled, and organized according to erection stages. Packing plans can be prepared around the sequence in which the bridge will be assembled. This reduces the risk that important components will be buried beneath unrelated materials or delivered in an order that complicates site operations.

A controlled manufacturing environment offers advantages that are difficult to reproduce in the field. Production teams can use dedicated equipment, stable work platforms, repeatable procedures, and organized inspection points. Weather-related interruptions are reduced, and fabrication activities can be performed with more consistent access to tools and materials. These conditions support reliable dimensional control and more efficient quality management.

Pre-assembly is also valuable for international and long-distance deliveries. When a bridge is shipped to a project site far from the manufacturing base, correcting a missing or incompatible component can create major delays. Factory verification helps identify potential issues before loading. It also provides the project team with greater confidence that the shipment represents a complete and coordinated bridge package.

The pre-assembly of the bridge for shipment to the Sichuan project site demonstrates how the system can be prepared for a specific deployment rather than treated as a collection of unrelated steel parts. The bridge can be checked in relation to its intended structural arrangement, then disassembled or packaged for transport as required by the logistics plan. This process connects manufacturing, quality assurance, and field construction planning.

Advanced Manufacturing and Production Capabilities

The manufacturer behind the bridge integrates engineering design, precision manufacturing, quality management, and project support. This integrated approach is important because modular bridge performance depends on consistency across many components. A bridge is not defined only by its main truss panels. It also includes connection elements, bracing, deck-support members, reinforcing components, protective coatings, handling features, and documentation.

Advanced manufacturing begins with engineering control. Product drawings, component schedules, material requirements, welding procedures, inspection plans, and coating specifications must be coordinated before production. When a modular system is manufactured repeatedly, standardized engineering can improve efficiency while still allowing project-specific adjustments in span, width, load class, deck arrangement, and support conditions.

Precision steel fabrication supports the accurate production of structural members and connection interfaces. Automated cutting, forming, drilling, and welding equipment can help achieve repeatable dimensions and consistent production quality. Automation does not replace engineering judgment or inspection, but it can reduce variation in repetitive operations and improve productivity for large-volume manufacturing.

Automated welding is especially relevant to modular bridge production. Welding quality can influence strength, fatigue performance, dimensional stability, and long-term durability. Controlled welding parameters, trained operators, qualified procedures, and suitable inspection methods help produce reliable welded assemblies. Depending on the project requirements, inspections may include visual examination, dimensional checks, and nondestructive testing of selected welds.

Standardized workflows also improve traceability. Materials can be recorded from receipt through cutting, fabrication, assembly, inspection, galvanizing, storage, and dispatch. Traceability helps the manufacturer manage quality records and gives the client a clearer understanding of the production process. For infrastructure projects, these records may be important for acceptance, maintenance, future reuse, and regulatory review.

The company reports that its factory uses advanced automation and standardized workflows to produce high-strength modular bridge systems in accordance with ASTM, EN, and national specifications. Applying multiple specification frameworks can be valuable for international projects because clients may work under different procurement, design, and quality systems. The exact governing standard for a particular bridge should be confirmed during engineering and contract review.

Quality Management from Material to Shipment

A dependable bridge manufacturing process should include quality controls at every significant stage. Material verification is the first step. Steel grades, dimensions, certificates, and surface conditions should be checked against the approved requirements. Components then move through controlled fabrication operations, where dimensions, hole locations, welds, connection surfaces, and assembly interfaces are evaluated.

After fabrication, trial assembly or pre-assembly can provide an additional layer of verification. The manufacturer can check whether panels and supporting components align correctly, whether connection hardware is suitable, and whether the proposed erection sequence is practical. Any adjustment is more manageable in the factory than after the shipment has reached a congested or remote site.

Galvanizing quality also requires attention. Surface preparation, bath conditions, coating coverage, drainage, venting, handling, and inspection all influence the final result. The coating should be continuous and appropriately bonded, while components should be designed and handled to avoid unnecessary distortion or damage. Galvanized parts should be stored in a way that promotes drainage and prevents prolonged contact with standing water.

Before dispatch, the bridge package should be reviewed against the approved bill of materials and shipping plan. Components can be counted, marked, photographed, and grouped. Connection hardware and ancillary parts should be protected from loss or contamination. Transport planning should account for component dimensions, weight, lifting points, road restrictions, loading equipment, and the unloading strategy at the project site.

This disciplined approach reduces the difference between manufacturing quality and field performance. A bridge may be structurally well designed, but poor packing, incomplete documentation, or uncontrolled handling can create avoidable problems. The integration of engineering, fabrication, pre-assembly, inspection, and logistics is therefore a major strength of a professional modular bridge supplier.

Applications Across Infrastructure Sectors

The bridge can be adapted to a broad range of applications because its primary value lies in combining modular deployment with high structural performance. In transportation, it may be used as a temporary replacement bridge, construction bypass, detour crossing, or permanent modular connection where local conditions permit. Its four-lane arrangement can support projects with substantial traffic volumes and heavy vehicles.

In water conservancy and flood-control work, a large-span bridge can provide access over channels, reservoirs, drainage routes, and temporary diversion areas. Reduced intermediate supports may help preserve water flow and simplify construction near unstable banks. The bridge may also support the movement of pumps, excavators, cranes, pipe sections, aggregate, and emergency materials.

In disaster relief, speed and reliability are often more important than architectural form. A modular bridge can be transported to a damaged region and assembled after the necessary foundations or supports are prepared. It may restore access to isolated communities, enable the delivery of food and medical supplies, or reconnect emergency services with affected areas. The hot-dip galvanized finish is useful where the bridge may remain exposed to severe weather after the initial response period.

Military logistics and strategic transportation may require bridges capable of moving heavy vehicles through locations where permanent construction is not immediately available. A robust modular system can offer deployment flexibility while allowing the bridge to be removed, relocated, or reused when operational requirements change. Any use in such settings must follow the relevant security, engineering, traffic, and safety procedures.

Industrial facilities can also benefit from heavy-load modular access. Mining, energy, port, manufacturing, and large construction sites often require temporary crossings during expansion or maintenance. A bridge capable of supporting authorized heavy equipment can help maintain internal logistics and reduce delays caused by incomplete permanent works.

In international development projects, modular bridges can provide a standardized solution that is easier to transport and deploy than a fully site-built steel structure. The manufacturer’s experience with projects in China and abroad, including coastal engineering, railway-related bridge works, corridor access, and emergency deployments, supports its role as a supplier for varied project environments.

Comparison with Conventional Temporary Bridges

Compared with light-duty temporary bridges, the CB450 system offers a stronger emphasis on span length, load capacity, and traffic width. Light-duty systems may be easier to handle, but they can impose restrictions on vehicle weight, lane use, or span arrangement. For projects involving heavy equipment or high traffic demand, those restrictions may produce operational bottlenecks and require additional crossings.

Compared with a conventional site-fabricated steel bridge, a modular Bailey system can reduce the amount of fabrication that must occur at the project location. This may lower dependence on field welding, large fabrication yards, specialized labor, and extended weather windows. Factory manufacturing also supports repeatability and better control over coating application.

Compared with a permanent concrete or composite bridge, a modular steel bridge can often be delivered and assembled more quickly, especially where the project needs a temporary or transitional structure. It may also be easier to dismantle and redeploy. The trade-off is that the project still requires careful foundation design, traffic control, inspection, and maintenance, and the final service life and appearance may differ from those of a purpose-built permanent bridge.

Compared with an unprotected painted steel bridge, hot-dip galvanizing can reduce dependence on frequent coating maintenance in many environments. However, the correct comparison depends on the complete coating system, exposure category, inspection program, and required operating period. Galvanizing is a major advantage, but it should be considered part of an overall durability strategy rather than a replacement for sound detailing and maintenance.

Installation Planning and Site Coordination

Successful bridge deployment begins before the first component arrives. The project team should confirm the alignment, span, deck elevation, support locations, foundation capacity, approach geometry, drainage, access roads, lifting areas, and construction sequence. Soil investigations and hydraulic studies may be required, particularly for bridges crossing rivers, flood channels, or unstable ground.

Transport planning is another central consideration. Modular components must be delivered in a way that matches the available road network and site handling equipment. The project team should identify unloading zones, temporary storage areas, lifting capacities, and protection measures for galvanized surfaces. Components should be stored above standing water and arranged so that inspection and handling can occur without unnecessary rework.

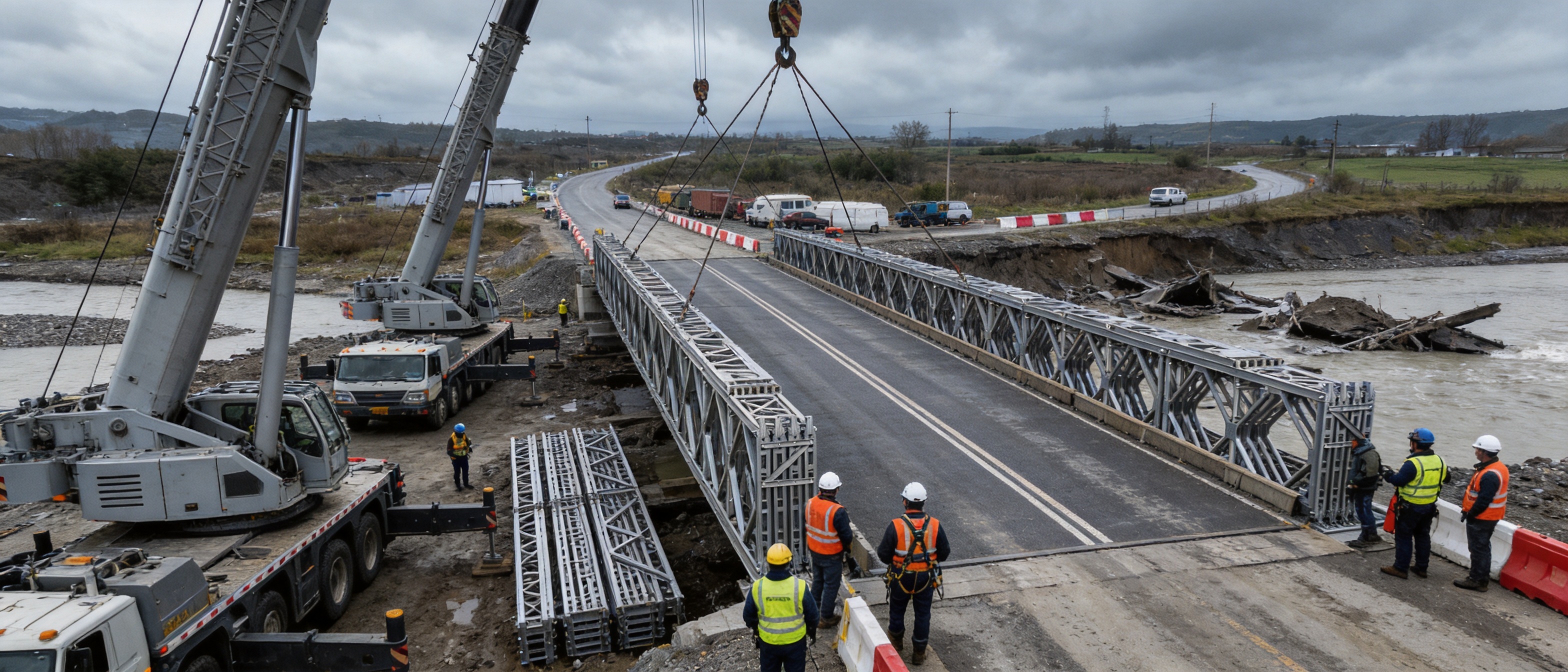

The erection plan should address cranes, launching equipment, temporary supports, work platforms, safety barriers, personal protective equipment, communication procedures, and exclusion zones. Large-span bridges may require a carefully controlled sequence to manage temporary forces and prevent instability. No component should be removed from temporary support or loaded before the engineer confirms that the structure has reached the required stage of completion.

After assembly, the bridge should be inspected before opening to traffic. This may include checking connection tightness, bracing, deck installation, bearing conditions, approach transitions, guardrails, drainage, clearance, signage, and any visible coating damage. Load testing or proof testing may be required by the governing authority or project specification.

Construction support is valuable throughout this process. A manufacturer that can provide technical guidance, component documentation, erection recommendations, and project coordination helps reduce the gap between product delivery and operational completion. The company’s focus on bridge erection and construction support equipment reflects the importance of this broader service role.

Maintenance, Inspection, and Reuse

Modular bridges are often selected because they can be reused, but reuse depends on disciplined inspection and recordkeeping. After each deployment, the components should be checked for deformation, cracking, excessive wear, damaged connections, coating loss, corrosion, and unauthorized modifications. Any component that does not meet the approved acceptance criteria should be repaired, replaced, or removed from service.

Routine inspections should focus on locations where water, debris, mud, chemicals, or road salts may accumulate. Connections, deck interfaces, drainage points, bearing areas, and regions exposed to vehicle impact deserve particular attention. Galvanized surfaces should be inspected for mechanical damage, and repairs should use approved methods compatible with the original coating system.

Traffic management can extend service life. Controlled speeds reduce impact and vibration. Compliance with axle and gross-weight restrictions limits overstress. Clear lane markings and barriers reduce the possibility of collision with truss elements or edge protection. Seasonal inspections may be appropriate in regions subject to floods, freeze-thaw cycles, heavy rainfall, or extreme temperature changes.

When a bridge is dismantled for reuse, the removal sequence should be treated as an engineered activity rather than ordinary disassembly. Loads must be transferred safely, temporary supports should be installed where necessary, and components should be marked to maintain traceability. Proper storage and transport protection will help preserve the galvanized finish and reduce damage before the next deployment.

Engineering and Procurement Considerations

Clients evaluating a large-span heavy-load modular bridge should begin by defining the operational requirement. Important questions include the required span, clear width, lane arrangement, design vehicle, frequency of loading, expected service period, environmental exposure, flood level, navigation clearance, construction access, and potential future relocation.

The stated maximum span and load capacity should be matched with a project-specific structural design. The supplier and project engineer should confirm whether the required arrangement is a single span or multiple span, whether additional reinforcement is needed, what deck system is appropriate, and how the supports will be configured. The design should also account for wind, seismic effects, temperature, braking, centrifugal forces, pedestrian separation, and construction-stage loads where applicable.

Procurement documents should identify the required standards, material certificates, welding qualifications, galvanizing requirements, inspection records, pre-assembly expectations, packing lists, erection assistance, spare parts, and warranty terms. Clear documentation helps ensure that the delivered bridge corresponds with the design basis and that responsibilities are understood among the manufacturer, contractor, engineer, and owner.

Clients should also evaluate the supplier’s manufacturing capacity. A suitable supplier should be able to demonstrate experience in modular bridge production, controlled steel fabrication, quality management, coating application, factory assembly, packing, and international or long-distance delivery. Production capacity is particularly important when several bridges must be supplied within a compressed schedule.

Why Manufacturing Strength Matters to Project Outcomes

The quality of a bridge is influenced by more than the nominal design capacity. Manufacturing consistency, dimensional control, coating quality, component identification, and delivery coordination all affect the project’s final cost and schedule. A supplier with integrated capabilities can manage these factors as a connected process instead of relying on multiple disconnected subcontracting stages.

Jiangsu Zhonghai Bridge Equipment Co., Ltd. is based in Zhenjiang, Jiangsu, an industrial and transportation center in China. The company specializes in modular steel bridges, Bailey bridge systems, customized steel components, erection support equipment, automated welding, and precision steel fabrication. Its stated production approach combines engineering design, manufacturing, quality management, and field support.

The company reports experience supporting transportation, water conservancy, military logistics, disaster relief, and international development projects. Its referenced project experience includes coastal engineering in the Maldives, temporary access bridges associated with the Shenzhen–Zhongshan Corridor, structural components for the Hangzhou Expo Center, multi-span Bailey bridges for the Lalin Railway, and emergency bridge deployments in several regions.

This range of applications is relevant because it demonstrates the ability to work with different site conditions, project schedules, load requirements, and delivery environments. A bridge manufacturer serving only one narrow market may not have the same perspective on emergency logistics, railway coordination, industrial transport, or international shipment. Cross-sector experience can strengthen design coordination and practical problem-solving.

The company’s focus on ASTM, EN, and national specifications also supports communication with clients operating under different technical frameworks. Standards alone do not guarantee project success, but a manufacturer familiar with multiple specification environments may be better positioned to prepare the documentation and quality procedures required by international infrastructure projects.

Environmental and Operational Benefits

Modular bridge construction can reduce the amount of site-based fabrication and shorten the duration of disturbance at the project location. Less field fabrication may mean fewer temporary buildings, reduced fuel consumption from prolonged construction operations, and less disruption to existing traffic or natural areas. The benefits depend on the transport distance, foundation design, erection equipment, and total project plan.

The ability to dismantle and reuse a modular bridge can also improve material efficiency. Instead of treating a temporary crossing as a single-use structure, an owner may relocate it to another project after inspection and refurbishment. Reuse can extend the productive life of the steel components and reduce the need to procure an entirely new bridge for each temporary application.

Galvanizing contributes to operational sustainability by supporting longer coating performance and reducing the frequency of maintenance interventions. Fewer repainting activities can mean less surface preparation, fewer coating materials, and fewer site visits. Proper end-of-life management is also important. Steel components can be repaired, reused, recycled, or processed according to applicable regulations.

Environmental planning remains necessary. Bridge foundations and approaches should be designed to limit erosion, protect water quality, maintain drainage, and avoid unnecessary disturbance to sensitive areas. A long-span configuration may help reduce in-channel construction, but each site must be assessed independently through the appropriate environmental and hydraulic procedures.

Project Value Beyond the Initial Purchase

The value of a modular bridge should be assessed across its full operational life rather than only by its initial purchase price. A bridge that arrives quickly, fits correctly, requires limited field fabrication, supports heavy traffic, resists corrosion, and can be reused may provide greater overall value than a lower-cost system with significant site modifications or maintenance requirements.

Schedule value is often decisive. Delayed access can affect road construction, industrial production, emergency relief, railway works, and public services. A factory-prepared modular bridge can help reduce schedule risk by moving a larger portion of the work into a controlled manufacturing environment. Although site conditions still govern the final installation period, pre-assembly and organized delivery can improve readiness.

Operational value comes from capacity and flexibility. A four-lane, heavy-load system can support more traffic scenarios than a narrow bridge. It can serve a temporary bypass, a construction corridor, a logistics route, or an emergency crossing. If the bridge can be dismantled and redeployed, its usefulness may continue after the original project is complete.

Risk value comes from quality control and durability. Galvanized components, standardized fabrication, documented inspections, and pre-assembly reduce several common sources of uncertainty. These benefits do not remove the need for engineering oversight, but they can improve the predictability of procurement, erection, inspection, and operation.

Frequently Asked Questions

What is the CB450 Type Large Span Heavy Load Galvanized Bailey Bridge?

It is a modular steel bridge system designed for large-span and heavy-load applications. The described configuration uses a four-lane, single-layer reinforced structure, hot-dip galvanized steel components, a maximum single span of up to 81 meters, and a stated load capacity of up to 80 tons.

How many lanes does the bridge provide?

The product is described as a four-lane bridge. The exact traffic arrangement, lane control, vehicle separation, and operating restrictions must be determined through the approved project design and the requirements of the relevant transportation authority.

What is the maximum single span?

The stated maximum single span is 81 meters. This figure represents a product capability and must be confirmed for the actual project after reviewing support conditions, design loads, wind, deflection, foundation capacity, erection sequence, and governing standards.

What load can the bridge carry?

The stated load capacity is up to 80 tons. The allowable vehicle type, axle arrangement, traffic frequency, and operating conditions must be confirmed by a qualified engineer. The bridge design also references HS-15, HS-20, HS-25, HL-93, and tracked-50 load requirements.

Why is hot-dip galvanizing used?

Hot-dip galvanizing applies a bonded zinc coating to steel components. It helps protect the steel from atmospheric corrosion and can support longer service life in outdoor environments. Inspection and maintenance remain necessary, particularly after handling damage, impact, cutting, welding, or exposure to highly corrosive conditions.

Can the bridge be used in emergency response projects?

Yes. Its modular construction, heavy-load capability, large-span potential, and factory preparation make it suitable for many emergency access and disaster-relief applications. Actual deployment depends on site surveys, foundation readiness, transport access, erection equipment, permits, and approval by the responsible engineer and authority.

What does factory pre-assembly achieve?

Factory pre-assembly allows the manufacturer to verify component fit, identify potential assembly issues, organize the shipment, and prepare the erection sequence before the bridge reaches the project site. It can reduce field uncertainty and support more efficient installation planning.

Is the bridge suitable for permanent use?

The bridge can be considered for temporary, semi-permanent, or certain permanent applications when the project design, code requirements, corrosion environment, foundations, inspection program, and service-life objectives are satisfied. The appropriate classification must be established by the project engineer and owner.

Can the bridge be dismantled and reused?

Modular Bailey bridge systems are generally suited to dismantling and redeployment. Reuse requires inspection of every component, confirmation of structural condition, repair or replacement of damaged parts, and preparation of a new project-specific design and erection plan.

What types of projects can use this bridge?

Potential applications include transportation bypasses, construction access, water conservancy works, flood-response crossings, industrial logistics, military logistics, railway-related works, international development projects, emergency replacement bridges, and other infrastructure projects requiring wide, heavy-duty modular access.

What should a buyer provide before requesting a project quotation?

A buyer should provide the required span, roadway width, number of lanes, design vehicle or load model, site location, environmental conditions, support arrangement, approach elevation, expected service period, construction schedule, applicable standards, transport constraints, and whether erection or technical support is required.

Conclusion

The CB450 Type Large Span Heavy Load Galvanized Bailey Bridge is designed to address a demanding infrastructure need: providing a wide, high-capacity, long-span crossing that can be manufactured efficiently, prepared before shipment, transported to the project location, and assembled as part of a controlled construction strategy. Its four-lane single-layer reinforced arrangement supports broad operational use, while the maximum stated single span of 81 meters and load capacity of up to 80 tons place it among the more capable solutions for heavy modular bridge applications.

Hot-dip galvanizing strengthens the bridge’s suitability for outdoor and challenging environments by providing durable corrosion protection. Factory pre-assembly, automated production, precision steel fabrication, standardized workflows, and integrated quality management further improve the connection between design intent and field performance. These advantages are particularly relevant to emergency response, industrial logistics, transportation upgrades, water conservancy, military access, and international infrastructure projects.

The system’s performance ultimately depends on project-specific engineering, suitable foundations, correct erection, traffic control, inspection, and maintenance. When these requirements are properly addressed, a large-span galvanized modular bridge can deliver more than a temporary crossing. It can provide schedule flexibility, heavy-load access, operational resilience, reuse potential, and a practical path to restoring or expanding vital connections.

References

1. Product technical information for the CB450 Type Large Span Heavy Load Galvanized Bailey Bridge, including stated span, capacity, structural configuration, galvanizing treatment, and design references.

2. General principles of modular steel bridge engineering, including factory fabrication, pre-assembly, component transport, field erection, inspection, and reuse.

3. American bridge design and vehicle loading practices associated with HS-15, HS-20, HS-25, HL-93, and tracked-load design models.

4. European structural steel design and fabrication principles for modular bridge systems and engineered steel components.

5. Technical guidance on hot-dip galvanizing, zinc coatings, corrosion protection, inspection, handling, storage, and repair of galvanized steel structures.

6. Quality management practices for structural steel fabrication, automated welding, dimensional control, traceability, nondestructive inspection, and factory pre-assembly.

7. Project planning principles for emergency bridges, temporary transportation links, waterway crossings, construction bypasses, and heavy-load logistics routes.
